Features

Specifications

Condition: New

Power: 200W, 100W, 500W, 1000W, 300W

Applicable Material: Stainless Steel, Carbon Steel, Aluminum, Stone, Metal, Rubber

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 3 Years

Core Components: Laser

Laser Type: Fiber Laser

Year: 2021

Laser Source Brand: RAYCUS

Laser Head Brand: RAYCUS

Control System Brand: RAYCUS

Weight (KG): 200 KG

Key Selling Points: Easy To Operate

Warranty: 3 Years

Applicable Industries: Printing Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Hotels, Home Use, Garment Shops, Food & Beverage Shops, Construction WorksÂ , Restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Retail, Building Materi

Local ServiceÂ Location: None

Showroom Location: None

After-sales Service Provided: Field Maintenance And Repair Service, Free Spare Parts, Online Support, Field Installation, Commissioning And Training, Video Technical Support

Laser Power: 100W/200W/300W/500W/1000W

Fiber Length: 5m/10m/15m

Outout Power Stability: Â±5%

Laser Wavelength: 1064Â±10NM

Cleaning Effciency: 2/5/15/20/25 MÂ²/h

Power Requirements: AC 220V/ 50-60Hz

Operating Temperature: 0-40Â°C

Cooling Method: Air/Water Cooling

Working Humidity: <80%

Scaning Width: 10-60/10-80mm

Certification: Ce

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Basic Infomation

Certification: ce

Payment & Shipping Terms

Packaging Details: 1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool 2. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time. 3.Whole film packagi

Supply Ability: 100 Set/Sets per Month

Product Description

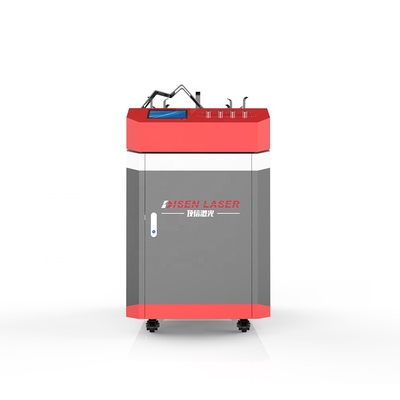

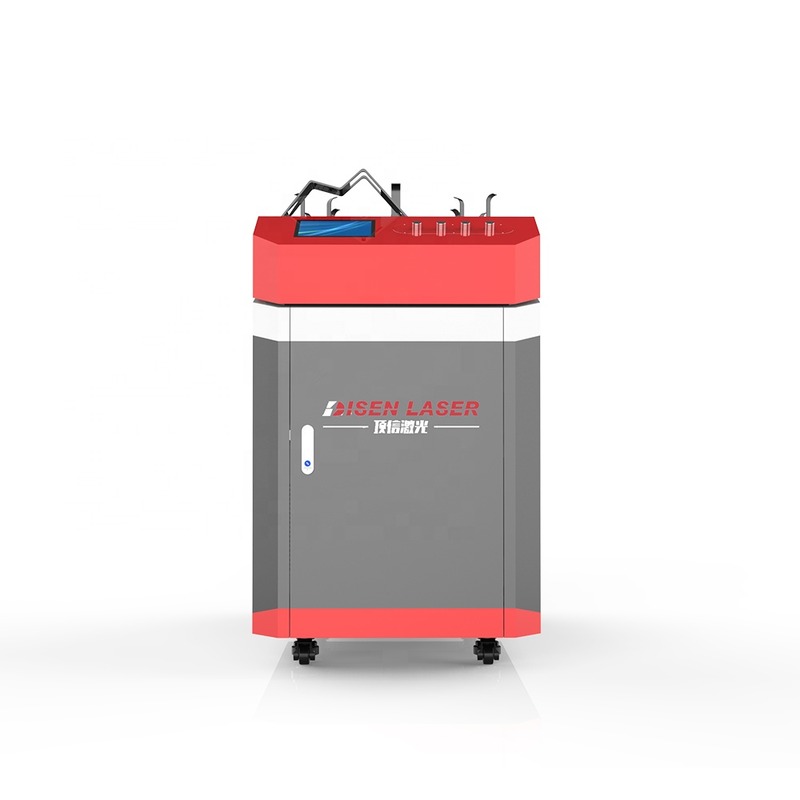

Laser Cleaning Machine Introduction

Laser cleaning machine can solve problems that cannot be solved by traditional cleaning methods. Laser cleaning has the characteristics of non-grinding and non-contact. It can not only be used to clean organic pollutants, but also inorganic substances, including metal rust, metal particles, and dust. The application effects include rust removal, paint removal, oil removal, cultural relic restoration, glue removal, coating removal, and coating removal.

Laser Cleaning Machine Details

The laser source of the laser cleaner uses a high-energy and stable QCW laser source, and the cleaning head uses an adjustable mode. Can target different cleaning objects. The laser beam will not produce mechanical force on the object to be cleaned, will not cause damage to the surface of the object to be cleaned, and does not need to use any chemicals and cleaning fluid during cleaning, and will not pollute the environment.

Laser Cleaning Machine Paramenters

Model	CH-100	CH-200	CH-300	CH-500	CH-1000
Laser Power	100W	200W	300W	500W	1000W
Fiber Length	5m	5m(10m optioned)			10m	15m
Outout Power Stability±5%	±5%
Repeat Frequency	20-200KHz	10-50KHz	10-50KHz	20-50KHz	25-50KHz
Laser Wavelength	1064±10NM
Power Requirements	AC 220V/ 50-60Hz
Power Consumption	0.5KW	2.5KW	3.2KW	4.7KW	6.5KW
Operating Temperature	0-40°C
Working Humidity	＜80% condensation
Cooling Method	Air/Water Cooling
Cleaning Effciency	2m²/h	5m²/h	15m²/h	20m²/h	25m²/h
Scaning Width	10-60mm	10-80mm
Cleaning Head Weight	2kg	2.5kg			3kg

Application Scenarios

The laser cleaning machine is applicable to a wide range of industries, and can be used in the mold industry, automobile manufacturing, shipbuilding, food processing, sewage treatment, rubber tires, petrochemical industries and other industries. Can clean rust, oil stains, oxide layers, paint, welds, etc.

Packing & Delivery

1. Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool 2. Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time. 3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust. The outermost is a wooden box with a fixed template.
