(Model: PEQD-030E)
Contact:Nicole Skypeperfectlaser002 Wechat/Whatsapp: 0086 136 5988 6768

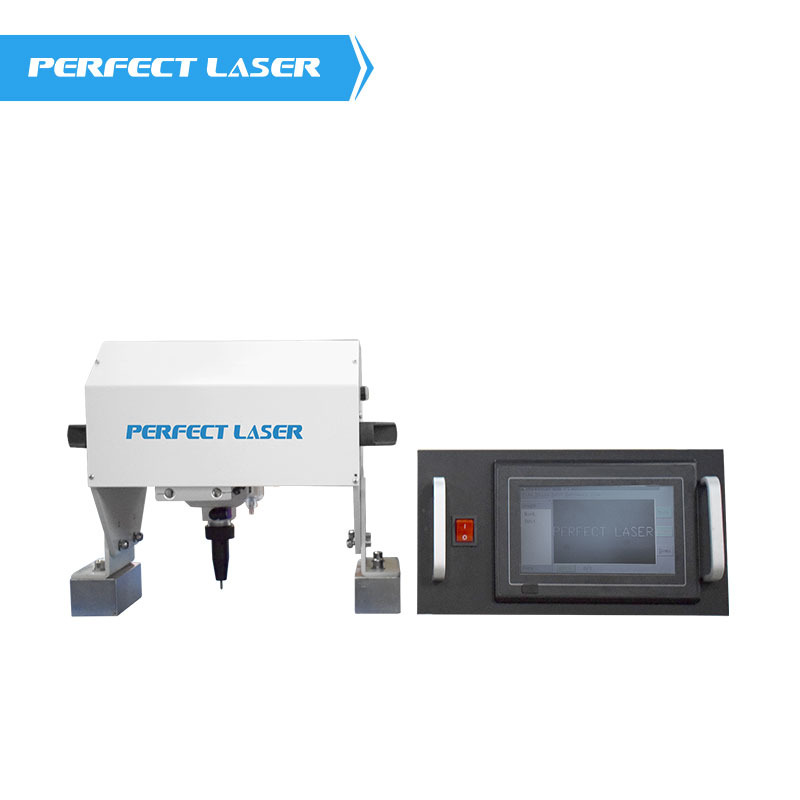

In order to meet the different needs of different customers, this Portable Dot Peen Marking Machine model PEQD-030E was introduced. This machine supports multiple fonts including MG Font, SHX Font in Auto CAD, CHR, TTF in Windows and support logos and graphs designed in DXF format from Auto CAD, Corel Draw.The dot peen markers is LCD control type, and doesn't need work with computer. This kind of dot peen markers is convenient to carry so the dot peen markers could be used on heavy work pieces that are hard to move.
Working video link in Youtube:
PEQD--030: https://youtu.be/CFxP5y9Tn7k
PEQD--025: https://youtu.be/XfCTB_HDFvg
PEQD-030E: https://youtu.be/hjU_Gy2qs_c
Applicable industries: Automotive manufacturing, aerospace, motorcycle manufacturing, electrical manufacturing, machinery and other fields.
Applicable materials: Various metal and non-metal hard plastic markings, such as stainless steel markings, brass markings, coating material markings, and hard plastic material markings.
It's also called handheld dot peen marker,dot peen markers,copper mark machine,copper marker.
Techinical Data | ||||||
Machine Name | Dot Peen Marking Machines | |||||
Model | PEQD-030E | |||||
Standard Marking Area | 125×16mm, 135×16mm, 150×100mm, Customized | |||||
Marking Depth | 0.01~2mm | |||||
Marking Speed | ≤50mm/second (3-4 number/second for 3mm height letters) | |||||
Marking Accuracy | 0.01 mm | |||||
Pin Hardness | HRC 92 | |||||
Power Supply | 220V±10%, 50HZ | |||||
Air Pressure | 0.2-0.6 Mpa | |||||
Machine Power | ≤400 W | |||||
Working Environment | -5~40 ℃ | |||||
Making Head Weight | 2 Kgs (Portable) | |||||
Whole Machine Weight | 15 Kgs | |||||
1.The portable marking head of the dot peen markers is Perfect Laser's original design, only with 2 Kg, portable and smart, very easy to carry.
2. The Portable Dot Peen Marking Machine needle is made of high-quality imported hard alloy and molded by a precision mold at one time. The rigidity of the needle can reach HRC92, ensuring the accuracy of high-speed marking.
3. The Portable Dot Peen Marking Machine use the United States imports "high-frequency valve", the number of vibration can reach 0.1 to 20 million times, can ensure the long-term stable operation of the machine.
4. Adopting the "positioning switch" imported from Japan can guarantee stable performance and high precision.
5. The Portable Dot Peen Marking Machine use the high-quality "linear motion guide rails" imported from Germany can realize automatic lubrication, dust prevention and wind protection, ensuring the long-term stability and high precision of the equipment.
6.The Portable Dot Peen Marking Machine equipped with Perfect Steel's self-developed ID steel-skin system, it greatly reduces the noise caused by machine operation. In addition, unnecessary waste of energy can be effectively avoided due to the low wear rate.
7.The handheld Portable Dot Peen Marking Machine is maintenance-free and has low operating costs. Its service life may exceed 10 years and the average MTTF may exceed 15,000 hours.
