Laser Marking Portable 50W Raycus Fiber Laser Marking Machine And Laser Engraving Machine For Metal Marking

1 Set
MOQ
$2,500.00(1 - 1 Sets) $2,450.00(2 - 2 Sets) $2,400.00(3 - 4 Sets) $2,350.00(>=5 Sets)
Price
Laser Marking Portable 50W Raycus Fiber Laser Marking Machine And Laser Engraving Machine For Metal Marking
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking, Stainless Steel, Brass, Silver, Gold, Al, And Some Nonmtals
Working Accuracy: 0.001mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg
Laser Type: Fiber Laser
Condition: New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: Beijing EZCAD
Laser Source Brand: Raycus
Control System Brand: Beijing EZCAD
Marking Head Brand: Beijing Sheng's Galvanometer Scanner
Weight (KG): 130 KG
Key Selling Points: Multifunctional
Warranty: 2 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Marking Area: 110mm*110mm
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Raycus Fiber Laser Source
Product Name: Fiber Laser Marking /engraving Machine
Laser Source: Raycus (JPT, MAX, IPG Optional)
Laser Power: 50W (30W / 30W Optional)
Laser Wavelength: 1064nm
Control Card: Original Beijing JCZ Mainboard With EZCAD Software
Windows System: Win XP / 7 / 8 / 10 (32 Bit , 64 Bit)
Power Supply: AC220V +10% / 50HZ
JPT Laser Source Lifespan: More Than 20,000 Hours
Raycus Laser Source Warranty: 2 Years
Showroom Location: None
Marketing Type: Hot Product 2021
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1). Water-proof plastic film package with foam protection in each corner; 2). Solid Seaworthy Wood Box Package with Steel Belt; 3). Save space as much as possible for container loading.
Product Description
Product Overview

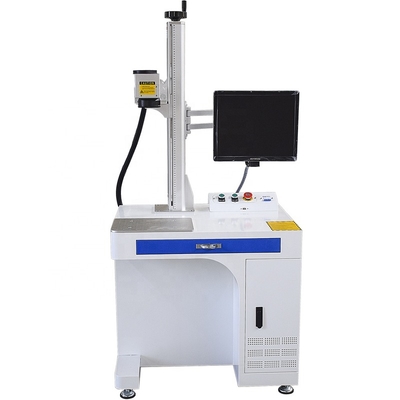

50W Portable Raycus Fiber Laser Marking Machine and Laser Engraving Machine for Metal Marking

1. Fast marking speed (up to 7000mm/s) and high efficiency of process.
2. Software EZCAD system is easy to operate, and compatible with PHOTOSHOP, CORELDRAW, AUTOCAD.
3. It supports graphic file such as PLT, DXF, BMP, PCX and so on.
4. It also could mark directly for bar code, serial number, lot number, date, qr code and so on.
5. Runs without consumable spare parts, no need maintenance, great for continuous working.
6. The galvanometer scanning system is made of optical scanner and servo control of two parts, the whole system adopts new technology, new material, new design and manufacturing.
7. High resolution ratio: resolution ratio is 10 times than the traditional marking machine.
8. Low consumption: is one ten than the traditional marking machine.
9. High speed: is 3-5 times than traditional marking machine.
10. Life of the laser can be up to 100,000 hours, and warranty is 3 years.
FEATURES AT A GLANCE
# Desktop model
# Raycus/ Max / JPT fiber laser source 50W
# Sino-Galvo Galvanometer scanner
# CARMEN HAAS Field lens
# Marking field : 110*110mm
# Beijng JCZ controlling system
# Aluminum alloy flat working table
# Red pointor for laser beam
# Manual lifting column 800mm
Right side
Left side
Back side
PRODUCT SPECIFICATIONS
No
Product name
Desktop fiber laser marking machine
1
Laser source and power
Raycus / JPT/ MAX fiber laser source 50W
2
Wavelength
1064nm
3
Beam Quality
M² ≤ 1.2
4
Frequency
20KHz-80KHz
5
Galvanometer scanner
Sino-Galvo
6
Field lens
CARMEN HAAS
7
Controlling system
Beijing JCZ controlling mainbaord and EZcad software on computer
8
Marking size
110 *110mm
(150*150, 175*175 mm, 250*250mm, 300*300mm for optional)
9
Repetitive accuracy
0.005mm
10
Min linear width
0.01mm
11
Max marking /engraaving speed
7000mm/s
12
Cooling device
S&A water chiller CW5000
13
Consumed power
<600W
14
Power
220V ± 10%, 1PH, 50HZ
PRODUCT CONFIGURATION
Raycus laser source 50W
Sino-Galvo Galvanometer scanner
CARMEN HAAS Field lens
Controlling cabinet with Beijing JCZ
Manual lifting column 800mm
Lifting handle
Controlling cabinet with Beijing JCZ
Aluminum alloy flat working table
Parts with delivery
Successful Project

Application:

Materials:
Metals: Gold, silver, copper, brass, alloy, aluminum, steel, stainless steel,carben steel, mild steel and etc.
Non-metals: Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile
communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles and etc.
Industry:
Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment’s, Hardware tools, Knife, Glasses, Clock,Cooker, Stainless steel products, aluminum name card and etc.
SIMILAR PRODUCTS
Desktop fiber laser
Desktop fiber laser
Desktop fiber laser
Desktop fiber laser
Desktop Mopa fiber laser
Desktop co2 laser
Portable split fiber laser
Portable split fiber laser
(stainless steel cover)
Portable split co2 laser
Portable fiber laser
Portable + handhelder fiber laser
Desktop integrated fiber laser
Semi-enclosed fiber laser
Semi-enclosed fiber laser
Semi-enclosed fiber laser
Enclosed fiber laser
Enclosed fiber laser
Enclosed fiber laser
FAQ
Q1. How to get the most suitable machine and best price？
Please tell us what you want to mark? Maximum size and desired power?

Q2. If we don't know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.

Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.

Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.

Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
