All Metal Electronic Engraving Machine HUAPU LXDBG2 Dot Peen Marking Machine Pneumatic

1.0 Pieces
MOQ
All Metal Electronic Engraving Machine HUAPU LXDBG2 Dot Peen Marking Machine Pneumatic
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Pneumatic Marking Engraving Machine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2020
Warranty Of Core Components: 1 Year
Core Components: MARKING HEAD
Warranty: 1 Year
Key Selling Points: Easy To Operate
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other
Showroom Location: None
Rated Power: 400w
Engraving Speed: 3~5 Letters/second Or 80mm/second
Application: All Metal
Dimensions: 620*560*860mm
Weight (KG): 75
Std. Marking Window(Area):: 110x80mm
Stylus Pin Hardness:: HRA92/HRA93
Stroke Frequency:: 300times/s
Marking Speed: 3-5 Letters /s Or 80mm/s
Repeat Marking Accuracy: 0.04mm, Able To Mark 1*1mm Character
Marking Depth:: 0.01to 2mm (Vary To The Material)
Power Supply:: AC220V±10%50HZ
Compressed Air( Pneumatic Air):: 0.2-0.6Mpa
Humidity:: 0-90% (Non-condensing)
Temperature:: From 0 To 40 Centigrade Degree.
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden case
Supply Ability: 100 Box/Boxes per Month
Product Description
Product Overview

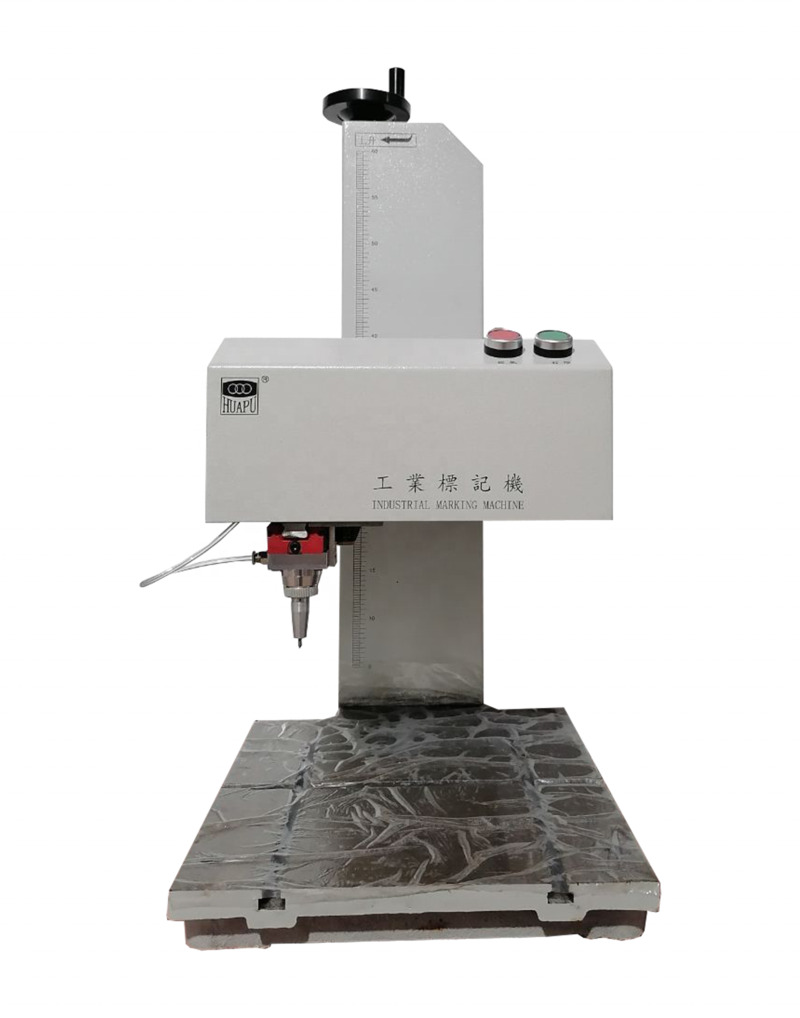

HUAPU LXDBG2 Pneumatic Dot Peen Marking Machine

HUAPU LXDBG2 Pneumatic Dot Peen Marking Machine is a standard column-mounted marking machine, which belongs to the general marking machine range of HUAPU. It communicate with PC though USB/serial port/parallel port. It is able
to work with various kinds of supports (such as Pneumatic support, Electromagnet support, circumferential support and so on). DBG-2 Pneumatic Dot Peen Marking Machine is able to mark on flat planes or uneven planes (level difference within 3mm). If installed with circular marking control box and rotatory support, the marking machine can mark on cylindrical surface as well.
FEATURES AT A GLANCE
Pneumatic marking, no need computer, no need electric supply
1、USB/serial port/parallel port communication available;
2、Equipped with fixture interlock control interface, realize continual marking automatically;
3、Original multifunction marking software on Windows XP/WIN 7/WIN 10;
4、Editable mark contents, compatible with
many vector software formats (AutoCAD/ CorelDraw and so on);
5、Many marking content modules and fonts, Able to mark date and time, serial number, VIN, and data input …; (Checking instruction or help system to get more information);
Front elevation
Left elevation
Right elevation
PRODUCT SPECIFICATIONS


LXDBG2
Marking Window
110x80mm
Dimension
 Machine Pack 322x452x747mm
Net Weight
 54kg
Machine/controller cable length
 3m ( 15m optional)
PRODUCT CONFIGURATION
Machine/controller cable 3m
 ( 15m optional)
Controller
stylus pin & stylus guide
SALES AND SERVICE NETWORK
Successful Project
Motor-bicycle engine marking
cylindrical grade marking
Circumferential marking
SIMILAR PRODUCTS
FAQ
Q1: Is the marking window can be designed as customer requirements?
A1： Over 95% of Huapu marking employees have more than 10 years of working experience in the marking industry, and the company has its own R & D team, hardware and software.For specific, please contact HUAPU.

Q2: How to eidt the marking file?
A2: Use machine controller, or edit on PC, and transfer via USB port to machine.

Q3: What's the marking area?
A3: As above, and if there is no found of your area, please contact HUAPU.
