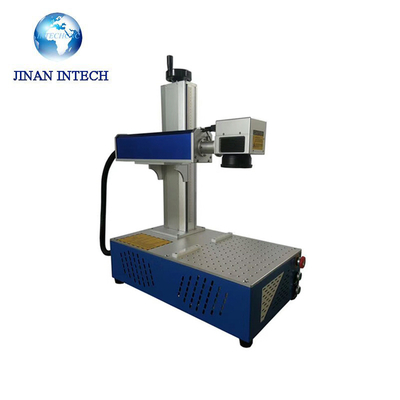

Desk Portable Type 30w mopa fiber laser marking machine 20w
|
Model |
LF-20 |
LF-30 |
LF-50 |
|
Laser Power |
20W |
30W |
50W |
|
Laser Wavelength |
1064nm |
||
|
Q-frequency |
20KHz~30KHz |
||
|
Divergence |
0.3mard |
||
|
Marking Range |
110*110mm(optional) |
||
|
Minimum Line Width |
0.02mm |
||
|
Minimum Character |
0.15mm |
||
|
Marking Depth |
0 ~0.5mm |
||
|
Engraving Line Speed |
≤7000mm/s |
||
|
Repeatability Accuracy |
±0.001mm |
||
|
Beam Quality |
M2:1.2~1.8 |
||
|
Marking Format |
Graphics, Text, Bar Codes, Two-dimensional Code, Automatically Marking the Date etc |
||
|
Graphic Format Supported |
bmp, jpg, gif ,tga, png, tif, ai, dxf, dst, plt, etc. |
||
|
Unit Power |
<0.5kw |
||
|
Laser Module Life |
>100000 hours |
||
A: We are factory.
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
A: Payment<=5000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
