Features

Specifications

Condition: New

Machine Type: Pneumatic

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: HOT Product 2021

Warranty Of Core Components: 1 Year

Core Components: Motor, Gear

Warranty: 1 Year

Key Selling Points: Sustainable

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction WorksÂ , Energy & Mining, Advertising Company, Other

Showroom Location: None

Rated Power: 300W

Engraving Speed: 5-180 Character/min

Main Axle Rotational Speed: 20mm/s

Milling Cutter Diameter: 3mm

Application: Marking And Engraving

Dimensions: 160*170*210mm

Weight (KG): 5.8

Graphic Format Supported: PLT,wmf

After-sale Service: Video Technical Support, Online Support

Basic Infomation

Payment & Shipping Terms

Packaging Details: Packing in cartons or wooden cases

Product Description

Model No.	XY/F19030-QC
compatible system ( computer needed)	Win xp, 7,10
Marking Area	90*30mm
Power supply	AC100V-240V 50Hz/60Hz
Engraving depth	0.01-1MM（Depends on the material）
Air power reques	0.3~0.8MPa
Engraving Speed	5-180 character/min
Repeated Accuracy	0.001mm
Marking direction	Plane 360 ° direction
Customer provided	PC &air compressor
Impact Frequency	300times/s
Marking content	Letters, numbers, characters, signs, graphics, serial numbers
Material hardness requirement	below HRC60
Input mode	keyboard entry
Minimum character	1mm
Continuous working time	24 hours

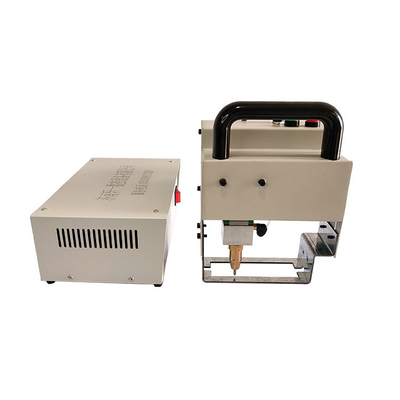

The handheld dot peen marking machine is software-controlled marking needle that moves according to a specific guide rail in the X, Y two-dimensional plane. The marking needle performs high-frequency impact motion under the action of electric power, thereby engraving a mark with a certain depth on your product parts surface. Xanyi Mak portable dot pin marking machine features: integrated design, extremely stable and easy to use, a good engraving depth, support some uneven surface marking, direct marking output through the pneumatics, marking result is permanent and clear.

Q: I am not sure if this machine suitable for my work? A:Don’t worry,just tell me the material of product, shape of workpiece, marking position, marking content size, and marking depth requirement. Q: I am worrying about the service and operation of your machine? A:We send installation and operation manual with machine, operation video, online training via Skype, Wechat, Whatsapp, phone conversation etc. are available. Staff training in our factory is free of charge. Q: How much will it cost shipping to my country? A:Please let me your location,then I will confirm to our forwarder.Then I can tell you how much it will cost. Q: What is the delivery time? A:Commonly the lead time is 5 working days after receiving payment. For customized machines and large quantity order, the lead time will be longer. Q: Are you factory or trading company? A:We are factory,which manufactures kinds of marking machine,with 12years experience in this area.Welcome to visit our factory whenever.
