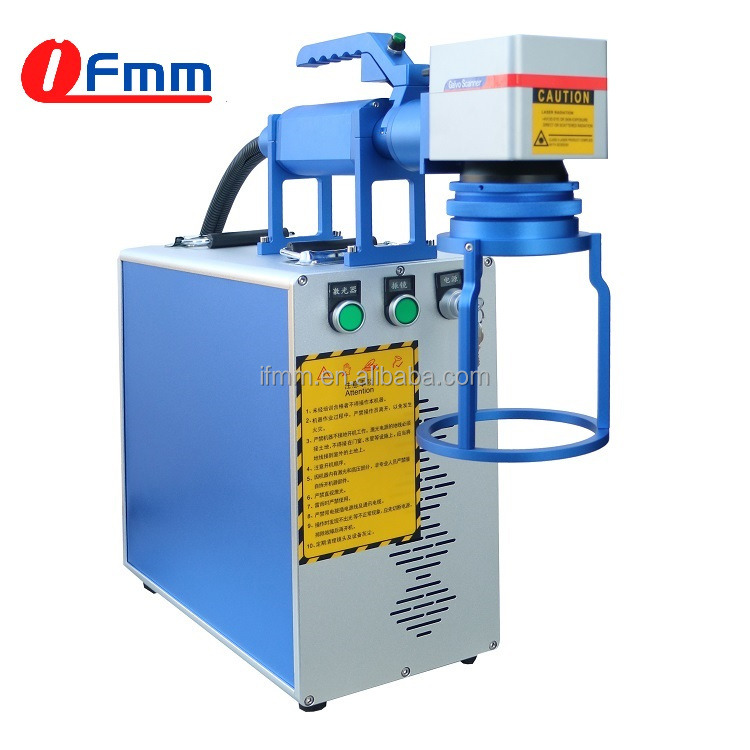

Deep Marking Raycus Fiber Laser Metal Handheld 30W 50W Mini Laser Printer Engraver

1 set
MOQ
$2,180.00(1 - 2 sets) $999.00(>=3 sets)
Price
Deep Marking Raycus Fiber Laser Metal Handheld 30W 50W Mini Laser Printer Engraver
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking
Working Accuracy: 0.01mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, DXP
Laser Type: Fiber Laser
Condition: New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Laser Source Brand: MAX
Control System Brand: BJJCZ
Weight (KG): 50 KG
Key Selling Points: Long Service Life
Warranty: 2 Years
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Food & Beverage Shops, Advertising Company
Marking Area: 150mm*150mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Motor, Bearing, Laser Source
Mode Of Operation: Pulsed
Configuration: Hand-held
Feature: Deep Marking
Product Name: Raycus Fiber Laser Metal Engraver 30W 50W Hand-held Mini Laser Printer
After-sales Service Provided: Online Support
Applicable Material: Fixed Metal Plastic
Laser Source: IPG Raycus Max JPT
Laser Power: 20W /30w/ 50w(Optional)
Laser Wavelength: 1064nm
Marking Speed: 0-7000mm/s
Marking Depth: 0.01-2mm
Laser Head: Beijing Sino Galvo RC1001
Power Supply: AC220V +10% / 50HZ
Basic Infomation
Payment & Shipping Terms
Packaging Details: 3Layer Plywood box
Product Description
Raycus Fiber Laser Metal Engraver 30W 50W Hand-held Mini Laser Printer
Product Description

Raycus Fiber Laser Metal Engraver 30W 50W Hand-held Mini Laser Printer

1. Fiber laser marking machine for various metallic materials, some non-metallic materials.
2. Fiber laser source have more than 100,000hour working time, and easy for maintain. 3. Fiber laser generator ,low consumption, easy for maintain.
4. Optional lens for different marking area.
5. Cabinet design: 45cm×20cm×40cm, 48cm×36cm×58cm
Specification
Dimension

Product Name
Raycus Fiber Laser Metal Engraver 30W 50W Hand-held Mini Laser Printer

Laser Power

20W 30W 50W100W
Laser Source
Raycus JPT MAX IPG
Laser Wavelength
1064nm
Cooling Method
Air cooling
Working Area
110mm*110mm-300mm*300mm
Marking Deepth
0-0.5mm (By materials)
Marking Speed
0-7000 mm/s
Repositioning Accuracy
±0.003mm
Marking Line Width
≥0.05mm
Power Supply
220V/110V  50Hz/60Hz
Complete Machine Power
500W
Details Images




Laser Source
Raycus fiber laser source has
high peak power, high single-pulse energy and optional spot diameter.




Galvo Scanner
Sino galvo RC1001
With very high marking speed, digital signal, high precision, and can work 24 hours continuously.




Field Lens
F-Theta lens
Optional 110*110mm, 150*150mm, 175*175mm, 200*200mm, 300*300mm, 500*500mm.




Main Board
BJJCZ main board with Ezcad software
Operating systems: XP/Win7/Win10 32/64 bit system
Optional Accessories

Rotary for your choose

Ring Rotary

1. DN50mm ring rotary for jewelry ring bracelet marking.
2. Weight: 2.5KG.

Plate Fixture

1. Fixture for jewelry gold sliver copper cutting.
2. Weight: 5.5KG

Air filter

1. Filter for Jewelry gold sliver engraving cutting.
2. Weight: 18KG
3. Power supply: AC220V 50Hz

Ring Rotary

1. DN80mm DN100mm ring rotary for jewelry ring bracelet.
2. Weight: 5.5KG.

Pen Rotary

1. Rotary for pen marking.
2. Weight: 12KG.

2D Working Table

1. Laser marking machine table size: 320*22*95mm.
2. Weight: 7.5KG.
Packing and Shipping
Our Advantages
1.Laser machine has a 24-hour continuous test before shipment 2.Laser machine warranty time: 2years 3.Main board: Original BJJCZ with Ezcad 4.Within 180days will change a totally new machine if broken 5.Provide product technical consultation 7*24 hours
3-layers plywood box
The fiber lasers machine is first covered by waterproof plastic bag, then at least 5-layers bubble wrap to hold the machine in the middle of plywood box, finally covered the 3-layer plywood box.
Recommend Products
Company Profile
Shandong IFMM Machinery Co., Ltd. was founded in 2016, located in Jinan, Shandong, China. We are specialized in producing and selling laser marking machine and laser welding machine, we can produce the standard and non-standard laser machines for different customers as their requiement. It widely used in hardware tools, knives and kitchenware, plastics, advertising, food and medicine industry, workshop assembly line, industrial metal welding, jewellery, etc. Our machines have been sold at home and abroad, welcome to visit and join us.
FAQ
A) How could I get a sample? Sample will be free, but before we received the first order, please afford the express charge, we will return it back to you within your first order. B) Sample time? Existing machine: Within 3 days. C) Whether you could mark our brand on your laser machines? Yes, we can mark your company Logo on the laser machines. D) Whether you could make your laser machines by our color? Yes, we have white, bule, red and grey for your choose, other color also can be customized if you can meet our MOQ. E) How to guarantee the quality of your laser machines? 1) Strict 48hours marking test during production. 2) Strict 24hours marking test on machines before shipment and intact packaging ensured.
