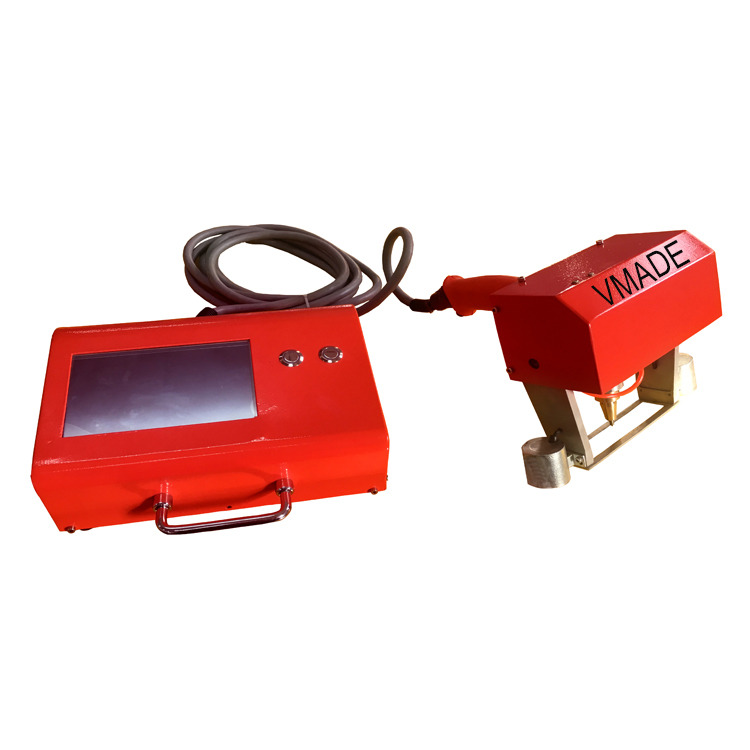

Model: VPM-10P/20P
Applications: Used for marking large-sized workpieces or immovable parts and components on site.
Main Features:
Provided with a lightweight marking head, it is easy to carry for mobile use. Used for printing any character or graphic in large-sized components made of various materials. Fitted with a two-dimensional table which is die casted with precision molds, linear rolling guide rails, and self-enclosed and self-lubricating bearings, thus ensuring highly consistent performance. Employ control software based on WINDOWS operating systems, which enables the automatic printing of serial numbers. It is an ideal machine for marking frames, signs, large-sized or immovable workpieces.
|
Weight |
<20 kg (with solenoid) |
Power |
<300 W (with solenoid) |
|
Impact Resistance |
0-25 kg |
Operating Temperature |
-10-40 ℃ |
|
Operating Humidity |
0-90% (non-condensing) |
Air Pressure |
0.3-0.7 Mpa |
|
Marking Depth |
0-0.8 mm (adjustable depending on materials) |
Marking Speed |
5-120 characters/min |
|
Marking Mode |
Pneumatic Printing |
Marking Range |
VPM-20P:120*20 mm VPM-10P:80*20 mm |
|
Marking Types |
Numbers, English Letters, Common Symbols, Chinese Characters |
||
VMQ-0218B packing Size:570*390*370mm Weight:17Kg
Marking content OF metal working marking machines :
♣ Cast and Forge Marking
♣ Logo marking
♣ 2D Matrix code marking
♣ Direct Part Marking (DPM)
♣ Component Traceability and Identification
♣ Time & Date Marking
♣ ID and Serial Numbers Marking
♣ Compliance Marking
♣ Metal Plate Marking
♣ Part numbering
Marking Materials of dot pin:
Stainless steel, high-grade steel, steel, Carbon steel, Copper, Iron, ferrous metals, Aluminum, Brass,hard plastic materials.
