ZIXU lpg Gas Cylinder Marking Machine for Round Surface Cylinders Pneumatic Dot Peen Marking Machine
Zixu gas cylidner pneuamtic dot peen marking machine widely is used for gas industry to mark characters and graphics, serial number on large round surface parts or immovable cylinders, such as oxygen cylinder, liquefied gas cylinder, natural gas cylinder, specialgas cylinder etc.
The marking effect is very clear and beautiful even if on the painting surface. It will save a lot of effeciency and labor cost for many gas cylinder manufacturers. The operation is simple and safety.
Application range is the most extensive, cost-effective. This model is designed for gas industry, it has the advantage of portable, light weight, simple operation.
The machine equipped high quality marking needle especially for deep marking on high hard materials. And also we support free proofing and marking solutions for customers, supply customized per customers' requirements.
It has served thousands of companies at home and abroad. Our gas cylinders marking machine has developed a newest and most suitable cylinder marking through upgrading and upgrading.

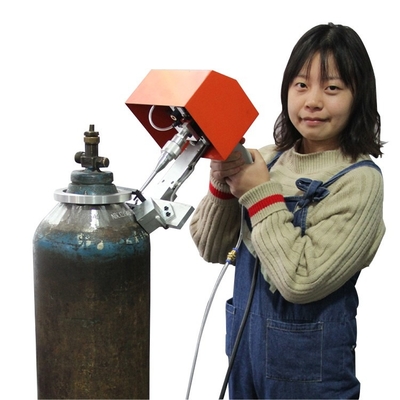

The steel rim perfectly fits with the cylinder, and the alloy marking needle independently developed by our company can mark your gas cylinder with clear and beautiful figures or patterns.
| Marking Speed | 2-5 characters(2x2mm)/s |
| Stroke Frequency | 300 times/s |
| Marking Depth | 0.01 to 1mm (Vary to the material) |
| Marking contents | Alphanumeric info, Data Matrix or dot matrix 2D codes, Shift codes, Barcode, Serial Number, Date, VIN Code, Time, Letter, Figure, Logo, Graphics etc. |
| Stylus Pin Hardness | HRA92/HRA93 |
| Marking area | 80x40mm,130x30mm,140x80mm, 200x200mm |
| Dimensions | 330x200x230mm |
| Marking materials |
< HRC60 metallic and nonmetallic materials < HRC60 need special stylus |
| Repeat accuracy | 0.02-0.04mm |
| Power | 300W |
| Work voltage | AC110V 60HZ or AC220V 50HZ |
| Pneumatic Air | 0.2 - 0.6Mpa |
| Connection | USB 2.0 Port and RS -232 |
| Controller | 1. 7" LCD touch screen controller 2. windows 7 & windows XP |
| Power type | 1.Pneumatic 2.Electric |
| Marking directions | up, down, left, right, and the circular arc surface marking |
| Gross weight | 13KG |
With over 10 years efforts and innovation. Our products have been exported to more than 100 different countries and regions. Our company has the European CE certificate, ISO 9001 quality system certificate.
