Provide signal interface
Our marking machine can provide a variety of interfaces, such as PLC, RS232, RS485, etc., which can connect with your equipment or upload data.
This model is Dot Matrix Pneumatic Marking Machine
1. This model can be used for VIN code engraving of trailer, truck or car.
2.This model can be used for steel plate number marking.
3.This model can be used for the engraving of industrial mold number.
4.This model can be used for coding and engraving of oil pipe and oil cylinder.
5. If you don't know whether this model is suitable for you, please feel free to contact us.
| Power Supply | AC100~240V 50HZ/60HZ |
| Rated power | 200W |
| Air pressure | 0.3~0.8mpa |
| Printed content | Letters, numbers, characters, logos, Chinese characters, serial numbers |
| Printing range | 100*180mm |
| Engraving speed | 1 ~ 30 characters / min |
| Carving depth | 0.1~2mm(It depends on the hardness of the material) |
| Machine weight | 12KG(The weight does not include the control unit and accessories) |
| Control system | Windows XP, 7,8,10 32-bit or 64 bit operating system |
| Customer provided resources | Computer, air pump, power supply |
Display of marking machine

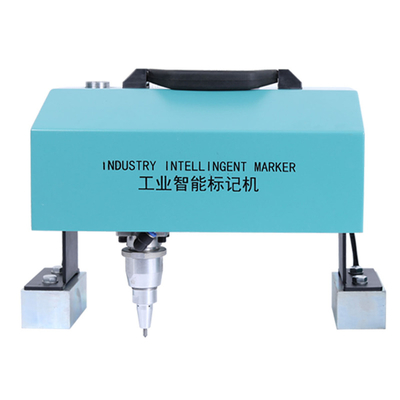

Front view of model UK100180
Top 45 degree view of UK100180
Marking machine parameters
1:Size of imprint area:100*180mm
2:Engraving depth:0.1-1mm(The printing depth is determined by the hardness of the material)
3:Air source pressure range:0.4-0.8Mpa
4:The power supply requirements:AC220V 50HZ/60HZ or AC110V 50HZ/60HZ(Engraving is customized according to user requirements)
5:Speed of engraving:Engraving speed 1-30 characters per minute.
6:Printing content: English letters, numbers, Chinese characters, graphics LOGO.
7: Direction of engraving: Plane and slightly cambered surface.
8: Input mode: manual, automatic serial number increment.
9: Marking needle: specially made of high hard alloy, hardness of HRC92, the average content can reach 500,000 characters, and can be repeatedly polished and used.
Show machine dimensions
(Manual measurement error, for reference only)
SIZE: H = 245mm L= 370mm W=202mm.
The following is a multi - Angle photo of the main marking machine
PS:
The picture above shows the four angles of the marking machine.
A:Front left view. B: Front right view.
C:Rear left view. D:Right rear view.
Marking machine interface description
1: A is the control switch of the electromagnet.
2: B is the interface to the host. (link interface H).
3: C is the interface to the air source
4: D is the switch that controls the start of imprinting.
5: E is for the emergency stop switch.
6: F is for the printing needle.
7: G is an electromagnet for fixing the marking machine.
8: J is for the power interface. The voltage is 110V or 220V
9: H Interface of the link coder (link interface B).
10: I is the interface (USB port) to connect the computer.
Marking machine engraving case
