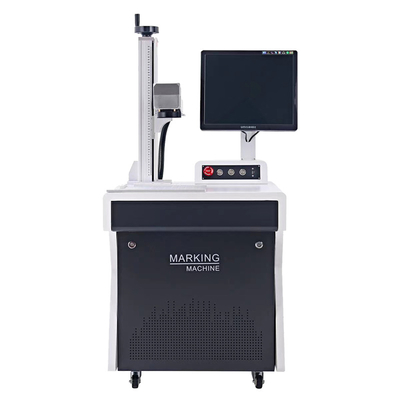

Air Cooled 3D Metal Fiber Laser Marking Machine for Engraving and Marking Deep Curved Surface with High Precision

1 Set
MOQ
$1,688.00(1 - 1 Sets) $1,625.00(2 - 5 Sets) $1,563.00(>=6 Sets)
Price
Air Cooled 3D Metal Fiber Laser Marking Machine for Engraving and Marking Deep Curved Surface with High Precision
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking, Laser Marking
Working Accuracy: 0.002, 0.012mm
Graphic Format Supported: AI, BMP, Dwg
Laser Type: Fiber Laser
Condition: New, New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD, EZCAD
Laser Source Brand: Raycus, RAYCUS
Control System Brand: EZCAD
Weight (KG): 75 KG, 105 KG
Key Selling Points: Competitive Price
Warranty: 2 Years, 2 Years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Marking Area: 110mm*110mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years
Core Components: Other
Mode Of Operation: Continuous Wave
Configuration: Bench-top
Feature: Air-cooled
Marketing Type: Ordinary Product
Basic Infomation
Payment & Shipping Terms
Packaging Details: Wooden pallet+ Wooden box packing
Supply Ability: 100 Piece/Pieces per Week
Product Description
Product Overview
PL-100 Laser Marking Machine as an advanced industrial laser marking machine has been applied to a variety of different industrial scenes. Due to its good stability and durability, it can be applied to different kinds of product manufacturers. PL-100 Laser Marking Machine can be applied to the packaging of metal products and non-metal products, such as production date,serial number,text, two-dimensional code, etc
Print multiple materials and support various data types
-It can carve all kinds of metal and some non-metal, metal alloy materials, plastic, rubber, leather and other materials
-Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc
-Engraving pattern, text, QR code, serial number, counter, date, shift, variable, etc
Laser machine detail
Laser wavelength
20W or 30W 50W
Laser type
Pulse or continuous
Minimum characters
0.15mm
Minimum line width
0.012mm
Marking range
Standard configuration: 100mmx100mm
Operating life
Laser operation > 100000 hours
External dimension
450 mm x 540 mm x 800 mm weight 25 kg
Worktop
320 mm x 200 mm 30 kg
Cooling system
Built in air cooling
operating system
WinXP/Win7
Graphic conversion
Provide CAD, CorelDRAW, CAXA file conversion
Two Years Warranty
During the warranty period we provide professional, considerate and timely after-sales service.
Company Introduction

Shenyang Faith Technology Co., Ltd.

Shenyang Faith Technology Co., Ltd.enterprise,which,integrates,independent research and development, production,sales and service. It specializes in providing laser marking machine technology and traceable system solutions. The company was founded in 2010 with a 30-person team and a 500㎡ production workshop. After more than 10 years of unremitting efforts,by early 2020, it has developed into an excellent team of 300 people and a 2500㎡ production workshop.
Payment and shipment
FAQ
Q1.What are the primary products of your company?
A1 .Our primary products include laser marking machine, inkjet printer machine,paging machine.
Q2.Is PL-100 Laser marking machine easy to use?
A2.Of course, PL-100 has a very convenient operating system, easy to use!
Q3.What material can PL-100 be engraved with?
A3.can mark plastic, rubber, leather and many kinds of metal materials.
Q6.Which countries are your laser machinery sold to?
A6.Our products are widely exported to Poland, Russia, Ukraine, Korea, Thailand, Egypt, Brazil, Australia, Singapore, Saudi Arabia,Turkey, India, Italy, and other countries.
Q7.How long is the delivery time?
A7.The products will be delivered to you within one week after the order is confirmed.

If you have any other questions, Please send an inquiry and you will be surprised !!!!
