Features

Specifications

Application: Laser Marking

Working Accuracy: 0.01mm

Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP

Laser Type: Visaul Fiber Laser Marking Machines

Condition: New

CNC Or Not: Yes

Cooling Mode: Air Cooling

Control Software: EZCAD

Laser Source Brand: RAYCUS/JPT Optional

Control System Brand: BJJCZ

Marking Head Brand: HANS SCAN

Weight (KG): 95 KG

Key Selling Points: Visual Positioning System For Laser Marking Machine

Warranty: 2 Years

Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction WorksÂ , Energy & Mining, Food & Bevera

Marking Area: 50mm*50mm--- 300mm*300mm(Optional)

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 1 Year

Core Components: CCD Vision Integration, Laser, Vision System

Mode Of Operation: Pulsed

Configuration: Desktop/bench-top

Feature: Vision System Configurable

Product Name: Visaul Fiber Laser Marking Machines

Color: Customized

Material: Metal

Beam Quality: <1.2

Wavelength: 1064nm

Standard Working Distance: 170mm(Configurable)

Marking Speed: 1000-6000mm/s

Machine Size: 800*600*1450mm

MOQ: 1 SET

Basic Infomation

Payment & Shipping Terms

Packaging Details: Wooden Box

Supply Ability: 100000 Set/Sets per Year

Product Description

Model	20W Fiber Laser Marking Machine
Laser power	20W
Material	Metal
Color	Customized
beam quality	<1.2
wavelength	1064nm
standard working distance	170mm(Configurable)
marking speed	1000-6000mm/s
machine size	8006001450mm
power supply of system	2.5KW/AC220V/50Hz
cooling method	Air cooling
operating ambient temperature	external ambient temperature 0-40℃（32-105℉） ambient humidity 10%-90%, no condensation
Applicable Material	Laser marking on steel, iron, aluminum, copper and other metal materials, and materials of electroplating, spray paint, ceramic, and plastic, etc.
Laser Type	Fiber Laser
Key Selling Points	Self-developped vision system for laser marking machine
Applicable Industries	auto parts 3C digital products medical equipment biomedicals home building materials hardware tools precision instruments semiconductor components military electronics household appliances PCB-SMT mechanical parts jewelry
Working Accuracy	0.01mm
Graphic Format Supported	AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Control Software	EZCAD
Marking Head Brand	HANS/ SINO-GALVO/ OER Optional
Marking Area	5050, 7070,100100 140140, 180180, 200200,260*260 Optional
Logistics and Packaging	Wooden Box

<<< CLICK HERE TO VIEW MORE PRODUCTS NOW

Fiber Laser Marking Machine

The most common choice for traceability marks such as barcodes, QR codes and text. Plus, their use for other graphics on things
like personalised items, switches, phones, jewellery, becomes more popular day-by-day.

Product Display

Long lifetime, maintenance-free

Fiber laser marking machine of the lifetime can reach 100,000 hours before any maintenance is needed

No consumables

The laser marking machine for metal can be used for metal marking for 8-10 years without any consumables

Easy to Use and versatile range of applications

Control button Humanized control system, easy to learn, safe and convenient, dust proof design.

Product Highlights

Vision System

Reduction in the number of defects

Increase in production yield

Reduction in downtime

Improved ability to track and trace parts and products in a production process

Low operational and defect cost

High-quality Laser marking and processing

Compatible with a variety of transmission systems

1. Digital control assembly line
customized assembly line
Suitable for: fragmented workpieces
movement direction: one-way
2. X-axis worktable or one-dimensional motion platform
Table size: 430x320mm
Suitable for: whole workpiece
3. XY-axis worktable or XY motion platform
Movement direction: two-dimensional
The above systems can choose between area light and backlight source based on the actual working condition.

Product Details

EZCAD control card

Authorized by BJJCZ, with great system compatibility. Do not require independent softdog.

Control button and switches

Humanized control system, easy to operate, dust proof design

Universal wheels

It can help you move the machine quickly and conveniently.

Lifting pillar

We can adjust it to change the focus length,so it is used in many types of machines.

Field lens

Compact size. Suitable for harsh environment, friendly interface.

Lifting handle

Import high quality, easy to adjust.
High precision ruler.

Marking Display

Company Profile

Hoffnung Intelligent Technology (Jiaxing) Co., Ltd, is one of the high-tech companies in intelligent manufacturing. We specialize in technologies of machine vision and artificail intelligence, combining advanced vision perception technology with the actual needs of industrial manufacturing, undertaking R&D and manufacturing of vision perception products and smart devices widely applied to quality inspection and monitoring in industrial manufacturing, collaborative processing, and intelligent transportation, such as our self-developed vision system of laser marking machines. So we can help our customers to upgrade intelligentization of manufacturing by boosting efficiency and quality, lowering costs and creating wealth for our customers. Our founding team includes members from Tsinghua University and HE JUN Business School, and many core technicians are PhDs or masters from Tsinghua University, Beihang University, Tongji University with rich experience in the technologies and fields such as artificial intelligence, machine vision, embedded electron, computer software, optics, and automation. So you can get professional technical support.

Certifications

Why Choose Us

1.We are the leading manufacturer of machine-vision sytems for laser marking machines in China. 2.Owning a professional R&D team.
3.Self-developed visual positioning laser marking machines,so we can provide you technical support very well. 4.7*24 after-sales service.
5.OEM service and customization service.

EXHIBITION

SAMPLE ROOM

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: Are you a factory or a trading company? A: We are a manufacturer with our own professional R&D team and experienced after-sales service team. Q2. How to get the most suitable machine and best price? Please tell us what's material you want to marking? And what is your target price? Then we wil recommand the most suitable model and the best price for you. Q3. If we don't know how to use the machine,can you teach us? There is a U disc send together with the machine including machine install video, some video of how to use machine, user manual and software user manual . 99% users can know how to operate it. In case anything need help, please contact us anytime. 1) Online call or video call (Email, Skype, Whatsapp, Wechat, Phone) 2) Remote desktop software (Team viewer) Q4.How long is the delivery time? According to client's specific requirements. Normally, it would be 7 to 10 days. Q5. Quality Control: The whole production procedure will be under regular inspection and strict quality control. The complete machine will be tested to make sure they can work very well before being out of factory. Q6. Do you arrange shipment for the machines? Yes.For FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents. Q7: What's your payment terms? Delivery time and MOQ? A: We accept T/T(bank transfer), L/C, Paypal, West union, and Alibaba Trade Assurance. Usually we need 30% as deposit, balance paid before shipment.

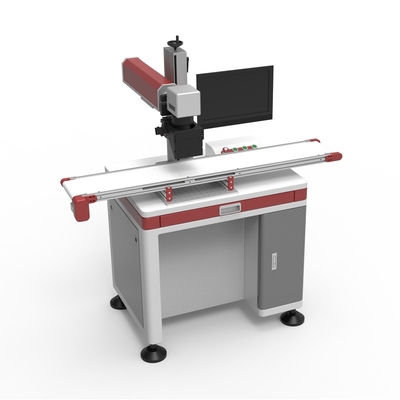

Configurable Vision System New Arrivals 20W/30W/50W/100W/150W Fiber Laser Positioning Video Marking Machines
