Home /Products/Fiber Marking Machine/Laser marking portable mini fiber laser marker 20W 30W 50W laser marking machine qr code laser marking engraving machine

Laser marking portable mini fiber laser marker 20W 30W 50W laser marking machine qr code laser marking engraving machine

3 Sets
MOQ
Laser marking portable mini fiber laser marker 20W 30W 50W laser marking machine qr code laser marking engraving machine
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Laser Marking
Working Accuracy: 0.002mm
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Laser Type: Fiber Laser
Condition: New
CNC Or Not: Yes
Cooling Mode: Air Cooling
Control Software: Ezcad
Laser Source Brand: RAYCUS
Control System Brand: Cypcut
Marking Head Brand: ALS
Weight (KG): 68 KG
Key Selling Points: Competitive Price
Warranty: 2 Years, 3 Years /mopa Fiber Laser Marking Machine
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Marking Area: 200mm*200mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Laser Source: Raycus

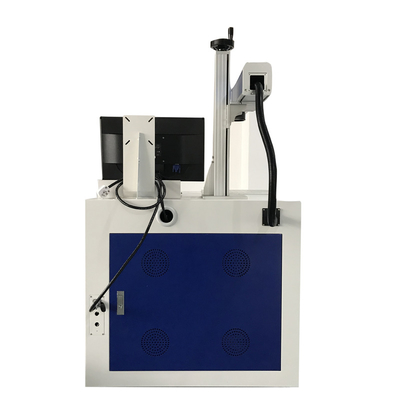

Product Name: Portable Fiber Laser Marking Machine
Marking Area: 110*110mm/ 200*200mm/300*300mm
Laser Wavelength: 1060nm
Control System: JCZ Control System
Fiber Laser Power: 10W / 20W/30W/50W
Marking Depth: 0.01-1mm
Marking Speed: 7000mm/s-12000mm/s
Min. Line Width: 0 .02mm
Certification: Ce, ISO, Sgs
After-sales Service Provided: Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, UA
Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge
Marketing Type: New Product 2020
Basic Infomation
Certification: ce, ISO, Sgs
Payment & Shipping Terms
Packaging Details: Plywood packaging for export
Product Description
Product Description
Product Paramenters
Product Type
Metal laser printing machine
Marking Material
Both metals and some non-metals

Metals: carbonsteel/mild steel, stainless steel, aluminum, copper, magnesium, zinc; rare metal andalloy steel(gold,silver,titanium, etc.); specialsurface treatment(aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy)

Non-metals: plastics, rubber, resin, carton box, etc.
Applied Industries
electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molds, gaskets and seals, bearing, auto parts,hardware, tools, building materials, PVC tubes, etc.
Marking Content
logo, character, serial number, bar code, data matrix
Main Parts
Fiber Laser Source, Scan Head, F-theta Lens, Marking Software, Computer
Core Parts & Brand & Lifetime
Core Parts: Fiber Laser Source

Brand: IPG, SPI, Raycus, Max, JPT (optional)

Lifetime: 100, 000 hours
Cooling Mode
Air Cooling
Continuous Working Hours
100000hours
Marking Software
English Version

Graphic Format Supported: DXF, PLT, AI, BMP, JPG, etc.
Easy Operation
With Powerful Function
Certification
CE
Related Products
Contact us
Products Description
1.Fiber laser: German IPG fiber laser or China fiber laser Optional (different price); NO maintenance laser source; fiber laser working time is 70000 to 100,000 hours.
2.High speed galvo scanner.German or USA Galvometer or China made Optional (different price)
3.Easy Operate without route maintenance
4.Higher precision, faster speed
5.Air cooling: Small size, low power consumption
6.Red light preview: show the marking position before marking
7.Up and Down Lifter laser head(desktop) and up and down worktable easy to marking engraving different workpiece
8.Rotary attachment optional: Engrave and mark inside and outside ring jewellery.
9.High temperature resistance: perfect for marking medical equipment etc that requires sterilization
10.The durability & Finer Marking quality: optimizes it for use in jewelry, mobile phones, and other items of value.
11.Computer Installed with Free Powerful software
12.User friendly interface, easy operation set and deal different layers graphic in separate.Support PLT,PCX, AL, DXF, BMP,JPG formats file compatible AutoCAD, CorelDraw, Photoshop etc software Automatic serialization, date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment
Company Profile
Suzhou ALS Optoelectronic Technology Co.,Ltd Since establishment in 2002, ALS GROUP has developed very rapidly with three standard intelligent manufacturing bases, ALS Optoelectronic in Suzhou producing laser lenses and laser nozzles, and Yosoon Laser in Suqian with professional sheet cutting, pipe cutting, precision welding and marking machines automated production lines. With over 17 years’ experience in laser optical lens design, manufacturing, sales and technology service， ALS Optoelectronic had grasped most advanced lens processing technology, especially lens filming processes, accomplished many R&D achievements in laser field. Yosoon Laser has professional sheet cutting, pipe cutting, precision welding automated and marking machines production lines. With professional, independent core R & D team and perfect systematic after-sales technical department, we truly provide customer-oriented service experience, aiming to provide customer with best laser solutions.
FAQ

Question: Why choose your company?

Answer: We're professional laser cutting machines manufacturer. We're more familiar with customer's cutting application so we're in a position to recommend a more suitable model to customers.



Question: What's MOQ?
Answer: One piece. You can mix it with other laser machine parts freely.



Question: What's delivery time?
Answer: We have them in stock. We can ship it immediately after receive payment.



Question: What's your payment terms?
Answer: T/T, L/C, Paypal
